API Data Model in Adonis and Postgres

Prerequisites

A fresh Adonis project configured with a running Postgres DB. You can create one by following this guide.

Fresh start

Make sure that there is no migration run until this point by executing:

adonis migration:status

If there are migrations that have already been ran, reset them by executing:

adonis migration:reset

Data model we are going to implement

The model consists of three entities: user, post, and post_status.

The details of the entitites and the relationships between them are presented below:

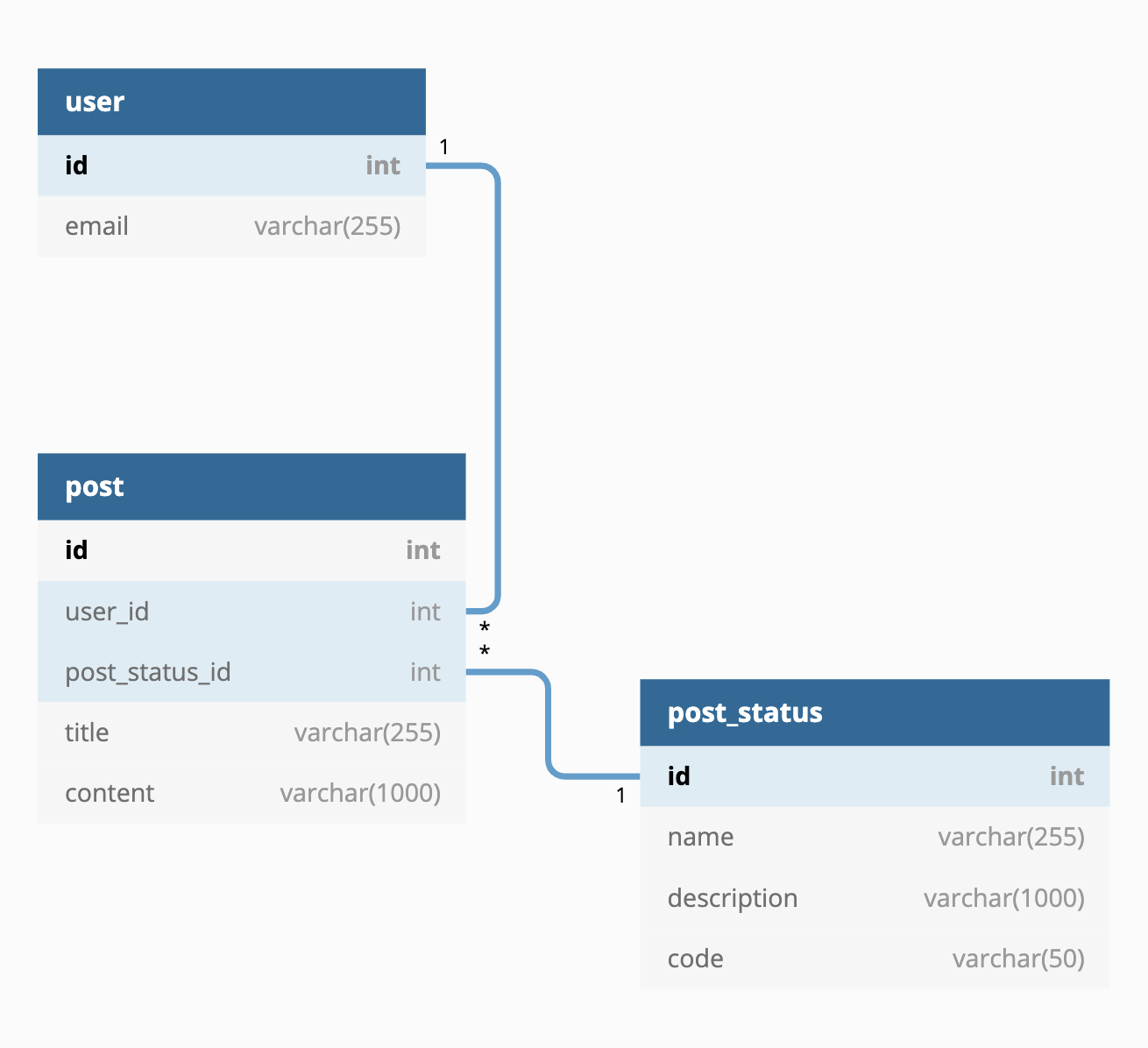

Data model

Setup table schemas and Lucid ORM models

Update the schema and model for the entities created by Adonis (users and tokens)

Delete the username and password columns from the user migration schema (we will not need them):

(Also, rename the table from users to user).

// file: database/migrations/*_user.js

class UserSchema extends Schema {
  up() {
    // updated from users to user
    this.create('user', table => {
      table.increments()
      table
        .string('email', 254)
        .notNullable()
        .unique()
      table.timestamps()
    })
  }

  down() {
    // updated from users to user
    this.drop('user')
  }
}

Update the tokens table name to token (singular form):

// file: database/migrations/*_token.js

class TokensSchema extends Schema {
  up() {
    // updated from tokens to token
    this.create('token', table => {
      table.increments()
      table
        .integer('user_id')
        .unsigned()
        .references('id')
        // updated from users to user
        .inTable('user')
      table
        .string('token', 255)
        .notNullable()
        .unique()
        .index()
      table.string('type', 80).notNullable()
      table.boolean('is_revoked').defaultTo(false)
      table.timestamps()
    })
  }

  down() {
    // updated from tokens to token
    this.drop('token')
  }
}

When working with models, Adonis assumes by default that the table names are in plural form. Throughout this guide we will update every model to work with the singular form of the coresponding table name by adding the get table() static method to the model class. This is just my preference.

Update the User model:

// file: app/Models/User.js

class User extends Model {
  static get table() {
    return 'user'
  }

  // other code
}

Update the Token model:

// file: app/Models/Token.js

class Token extends Model {
  static get table() {
    return 'token'
  }
}

Create the PostStatus schema and model

The migrations need to start from the entities that don’t depend on other entities.

Create the PostStatus model (pass -m to also create the schema migration file):

adonis make:model -m PostStatus

Update the table name to post_status (singular form) in the model:

// file: app/Models/PostStatus.js

class PostStatus extends Model {
  static get table() {
    return 'post_status'
  }
}

Update the table name to post_status (singular form) and add our column definitions in the migration schema:

// file: database/migrations/*_post_status_schema.js

class PostStatusSchema extends Schema {
  up() {
    this.create('post_status', table => {
      table.increments()
      table.string('name', 255)
      table.string('description', 1000)
      table.string('code', 50).unique()
      table.timestamps()
    })
  }

  down() {
    this.drop('post_status')
  }
}

Create the Post schema and model

Create the Post model (pass -m to also create the schema migration file):

adonis make:model -m Post

Update the model to use the new table name post (singular form) in the model:

// file: app/Models/Post.js

class Post extends Model {
  static get table() {
    return 'post'
  }
}

Update the table name to post (singular form) in the migration schema and add our column definitions:

// file: database/migrations/*_post_schema.js

class PostSchema extends Schema {
  up() {
    this.create('post', table => {
      table.increments()
      table
        .integer('user_id')
        .references('id')
        .inTable('user')
      table
        .integer('post_status_id')
        .references('id')
        .inTable('post_status')
      table.string('title', 255).notNullable()
      table.string('content', 1000).notNullable()
      table.timestamps()
    })
  }

  down() {
    this.drop('post')
  }
}

Define the relationships between entities

Add the user relationship to the posts:

// file: app/Models/User.js

class User extends Model {
  // other code

  posts() {
    return this.hasMany('App/Models/Post')
  }
}

Add the post status relationship to the post:

// file: app/Models/PostStatus.js

class PostStatus extends Model {
  static get table() {
    return 'post_status'
  }

  posts() {
    return this.hasMany('App/Models/Post')
  }
}

Create the tables

Run the migrations using:

adonis migration:run

It should output Database migrated successfully and if you refresh the Adminer page you should see the new tables.

Seed data

It’s nice to have some data created automatically so we have something to work with.

Run the following command to create the Dev seeder. This will seed data for the development environment. Later you might want to define a Prod seeder, which will seed data for the production environment:

adonis make:seed Dev

Create the factories

Factories are used in the seeder to easily create entities with mocked (and some real) data.

// file: database/factory.js
const Factory = use('Factory')

Factory.blueprint('App/Models/User', faker => {
  return {
    email: faker.email({ domain: 'example.com' }),
  }
})

Factory.blueprint('App/Models/Post', faker => {
  return {
    title: faker.sentence(),
    content: faker.paragraph(),
  }
})

Here, the faker object is an instance of the chance.js library.

Create the seeder

Seeders are the guys who put the seed data (which can come from the factories defined above) into the DB.

There will be only two post_statuses, so we define them separately before the seeder class:

// file: database/seeds/DevSeeder.js

// other code

const POST_STATUS_DRAFT = {
  name: 'Draft',
  description: 'This post is a work in progress.',
  code: 'DRAFT',
}
const POST_STATUS_PUBLISHED = {
  name: 'Published',
  description: 'This post is published.',
  code: 'PUBLISHED',
}

class DevSeeder {
  // other code
}

In the code below we define the seeder logic. First, note that we also get the PostStatus model from the DI container. Next, the logic is as follows:

Create the entities without dependencies first.
For every non dependent entity, create the entities that depend on them and save them to the database through the parents relationship defined in the Model. In this way, the Lucid ORM will also automatically create the connection between the entities in the DB (by setting the foreign keys).

One important thing to note here is that I haven’t yet found a way to seed data for entities that have multiple foreign keys that are notNullable(). The reason is that you can’t set an ORM relationship without trying to save the parent entity to the DB, meaning you can only set 1 foreign key bofore the INSERT operation is performed. Of course, the DB will throw an error because we are trying to set NULL values to notNullable() fields.

// file: database/seeds/DevSeeder.js

//other code
const Factory = use('Factory')

const PostStatus = use('App/Models/PostStatus')

// other code

class DevSeeder {
  async run() {
    // Create the user model instances (without inserting them into DB).
    const users = await Factory.model('App/Models/User').makeMany(5)

    // Create and insert the postStatus model instances into the DB.
    const postStatusDraft = await PostStatus.create(POST_STATUS_DRAFT)
    const postStatusPublished = await PostStatus.create(POST_STATUS_PUBLISHED)

    // For each user create 2 posts to be saved as DRAFT and 3 posts
    // to be saved as published.
    // Then associate the user and the postStatus to the posts by
    // inserting the posts to the DB through the relationships
    // with the aforementioned entities.
    users.forEach(async user => {
      const postsDraft = await Factory.model('App/Models/Post').makeMany(2)
      const postsPublished = await Factory.model('App/Models/Post').makeMany(3)

      await postStatusDraft.posts().saveMany(postsDraft)
      await postStatusPublished.posts().saveMany(postsPublished)

      await user.posts().saveMany(postsDraft)
      await user.posts().saveMany(postsPublished)
    })
  }
}

Run the seed and populate the DB

Run the seed with:

adonis seed

It should output Seeded database and if you refresh Adminer you should now see the user, post_status, and post tables populated with data.

Ending

This is it! I hope this article provides a good starting point in modelling and seeding your data in Adonis and PostgreSQL.

In the future this article may get updated if I come by any other difficulties which are worthy to be exemplified here.

Important notes

Sometimes the SQL relationships are not intuitive

Altough at first glance it appears that the relationship between a post and a post_status is a hasOne relationship, that’s not true - it would mean that every post has a separate row in the post_status column. Actually, in the SQL sense, one post_status hasMany posts.

This is how I naively defined the relationship at first:

// file: app/Models/Post.js

class Post extends Model {
  static get table() {
    return 'post'
  }

  postStatus() {
    return this.hasOne('App/Models/PostStatus')
  }
}

Common errors

If you get TypeError: Cannot read property 'name' of undefined when you try to run the seed using factories, you may have misspelled the name of the model in the factory declaration (or there is no factory defined for that model).

If you get TypeError: relatedInstance.save is not a function you may have called the save method instead of the saveMany for saving an array of model instances.
